Our Facilities
Our Quality Program
Crown West steel is certified to ISO 9001:2015, the globally recognized standard that all larger scale manufacturers must meet.
Crown West’s Quality Program was developed to maintain a high level of customer satisfaction. Our staff and management team are committed and encouraged to work toward continual improvement of our products, services and manufacturing processes. Dedicated personnel, and teams work together to maintain our system and implement quality process and improvements. Our quality policy, which we have posted throughout our facilities, is QUALITY IS OUR COMMITMENT.
Our facility is certified by the Canadian Welding Bureau to level W47.1 in Division 2 and our welding procedures are certified to the American Petroleum Institute’s API 650.
Services
Other Services
Crown West partners with only the best suppliers to provide you with top of the line services. Our administration staff work tirelessly to ensure all documentation is properly prepared, tracked and submitted for smooth transportation, receiving, traceability and billing. Our estimation and project management team is directly involved with many of the processes that happen on our shop floor, and our team members are in regular contact with our clients to ensure their expectations are met throughout the manufacturing process.
Contact Us!
We strongly encourage you to reach out to us with any needs you have, however small. We would like the opportunity too provide you with a lower cost alternative to your current manufacturing needs. we want your business!

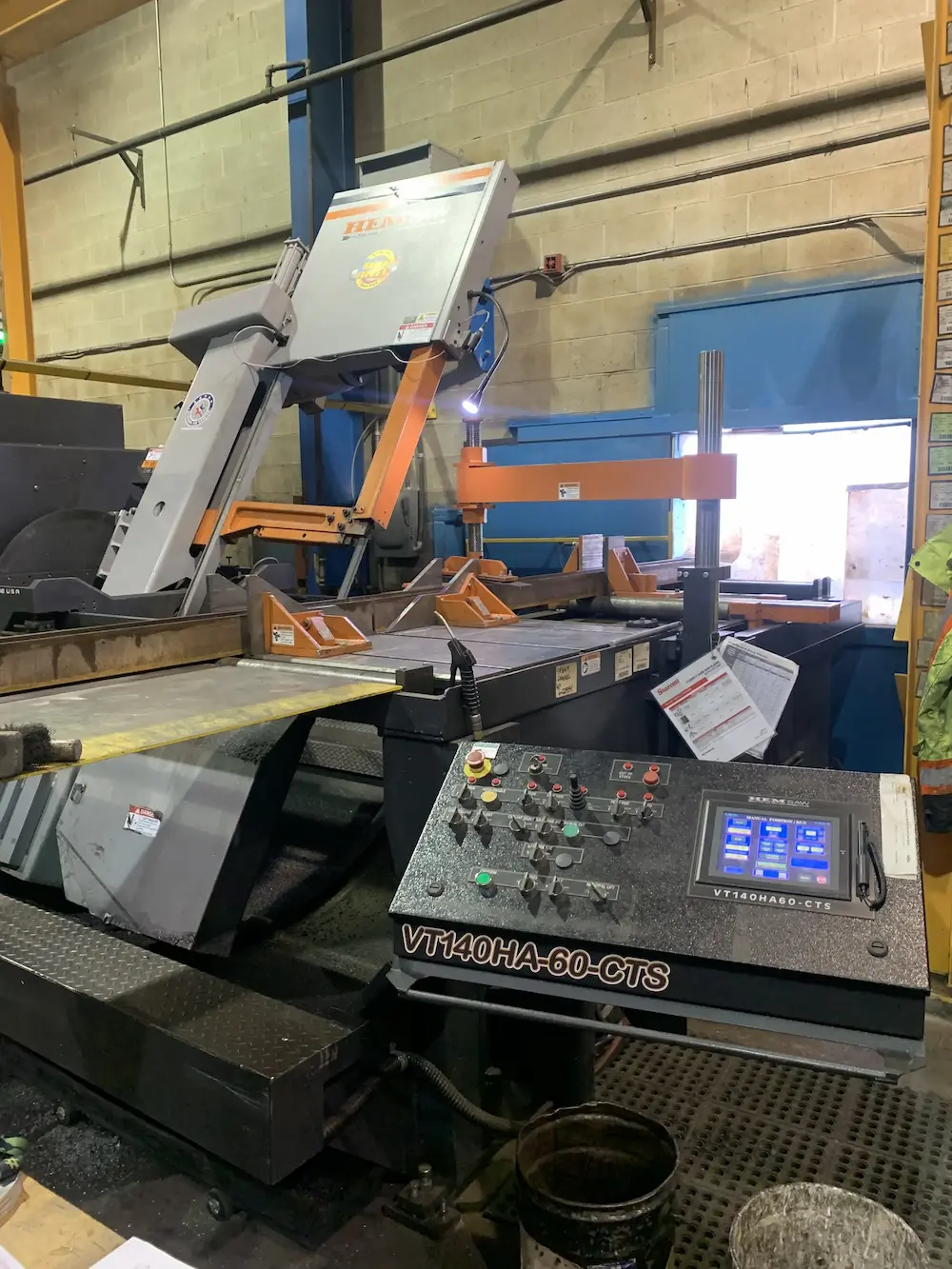

HE&M Vertical Band SawOur newest band saw can miter cut up to 60 degrees in both directions. The maximum vertical cut is 30 inches tall x 22 inches wide. It has a CNC control along with an auto-feed unit to make the precision cuts required for any job. We can cut lengths up to 48 feet with this saw. It is extremely cost effective for high volume production cutting. We also have various vertical and horizontal band saws, and chop saws for your structural and pipe cutting needs.

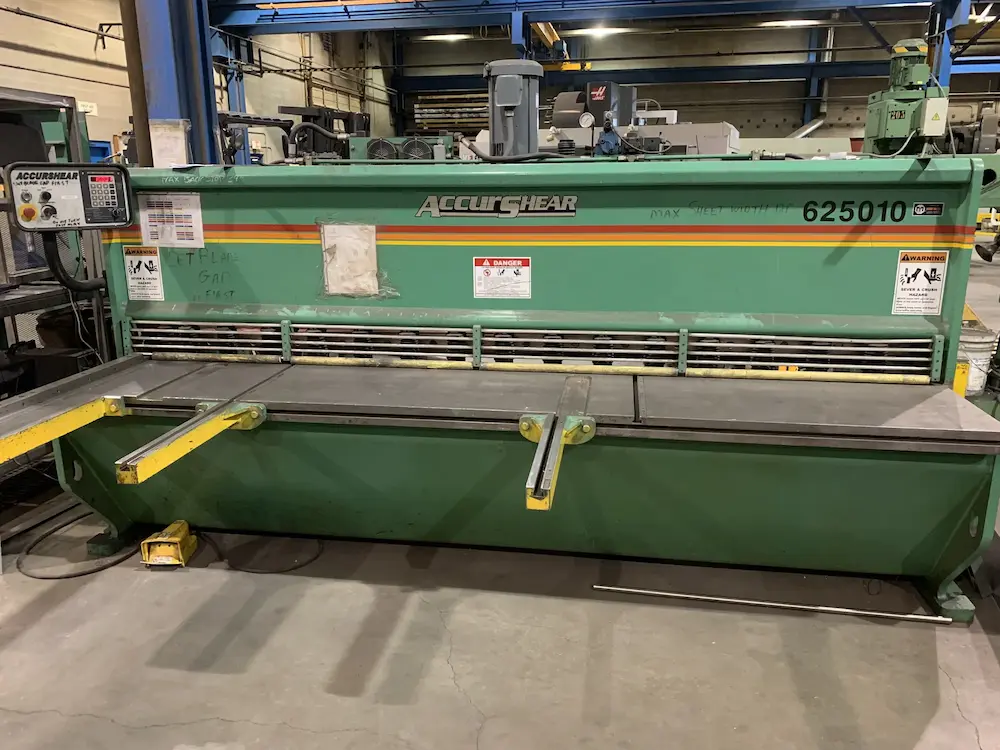

ACCURSHEAR 10FT PLATE SHEAROur Accurshear has a capacity of 1/4 inch thick mild steel up to 10 feet in length. For high volume rectangular cuts, even a laser processor can’t keep up with a shear!

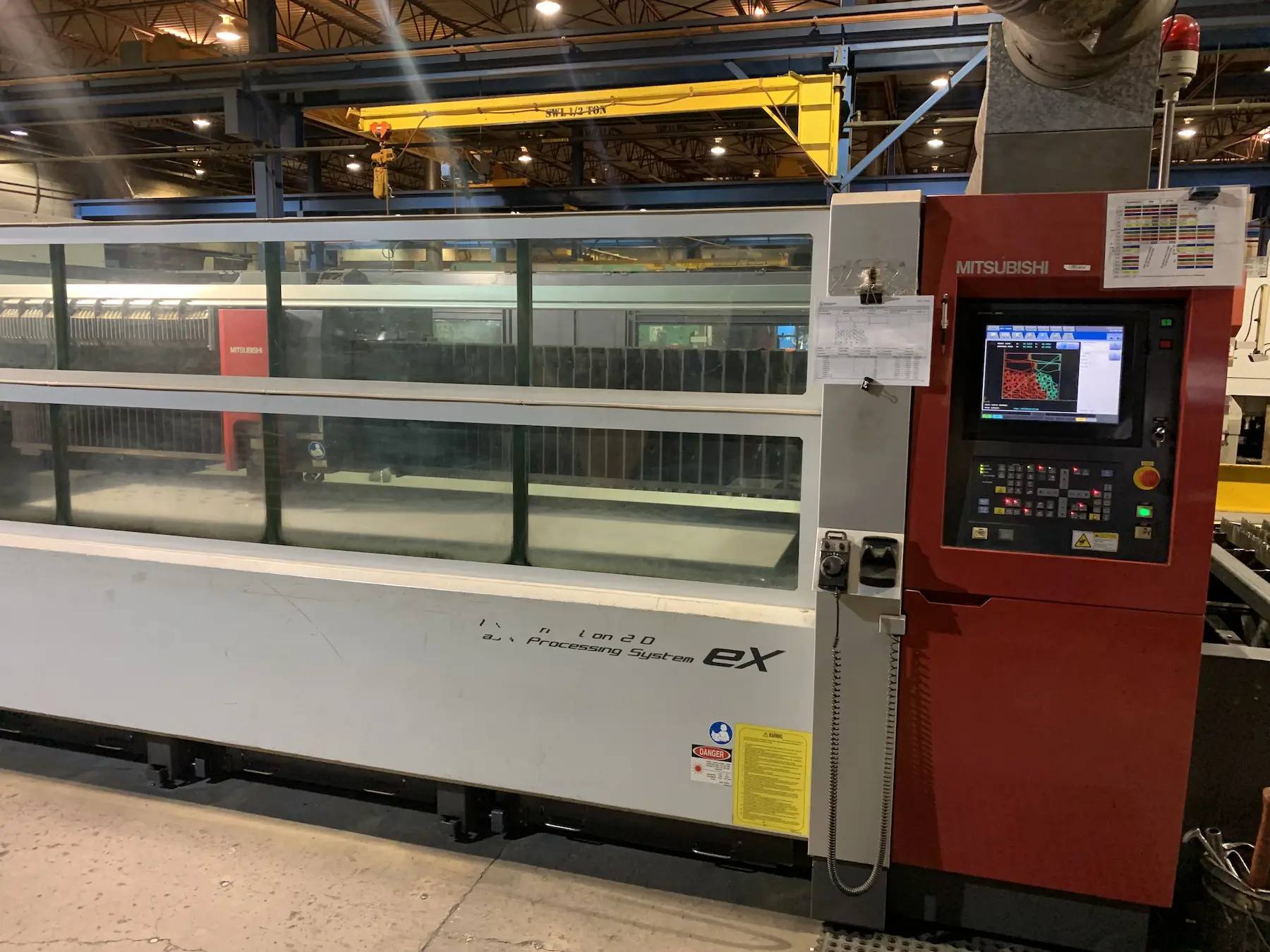

4.5 KW MISTUBISHI CO2 LASERNow cutting aluminum! For the past year, we have been cutting aluminum on our laser with great success. The most common alloys we cut are 5052 and 6061, however we can source any material you need. The cutting capacity of our laser ranges from 22 gauge (.03 inch) up to 1/2 inch for most steels and stainless steels, and 3/8 inch for aluminum. Our laser is complimented by ProNest and Sigmanest programming software to maximize material usage, an efficient dual table to reduce material handling costs and a vacuum lifter for loading material safely and maintaining visual material quality. If you already have a supplier that provides lasercut parts for you, please give us the opportunity to quote for you. We can usually provide significant cost reductions for new customers because of our higher material utilization and cutting speeds.

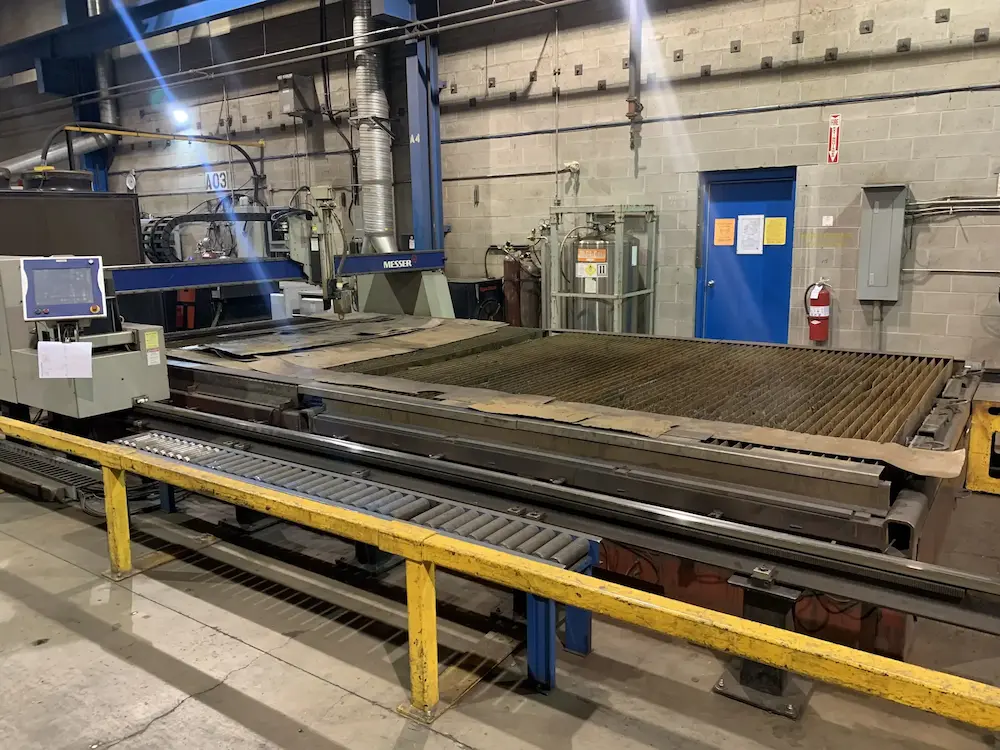

460 AMP MESSER EDGEMASTER CNC PLASMAOur 10 foot x 20 foot Messer CNC plasma table has a cutting capacity from 20 gauge (.035 inch) up to and including 3 inch material. This work center is complimented by ProNest programming to maximize material usage and a 5 ton crane for loading material safely.

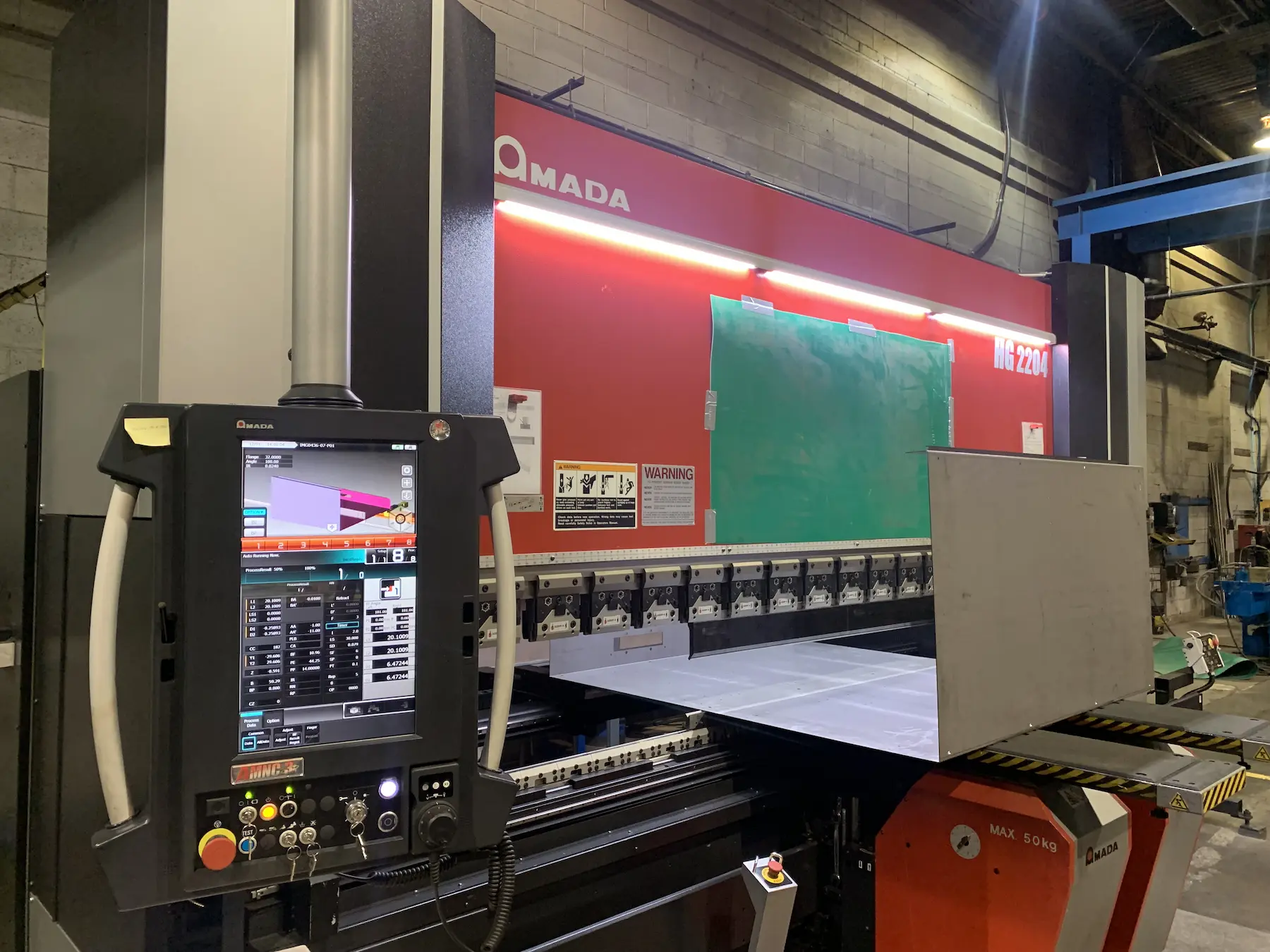

AMADA HG2204 PRESS BRAKEWith a 220 ton capacity and a 13ft (4m) total bend length, this CNC high speed press brake is extremely repeatable and can bend parts in a fraction of the time of older models. We can bump pipe shoes as well as conical shapes. This is a high production machine with a ton of available capacity. If you have any forming jobs with high quantities or small tolerances, this is the machine you want to run them on!

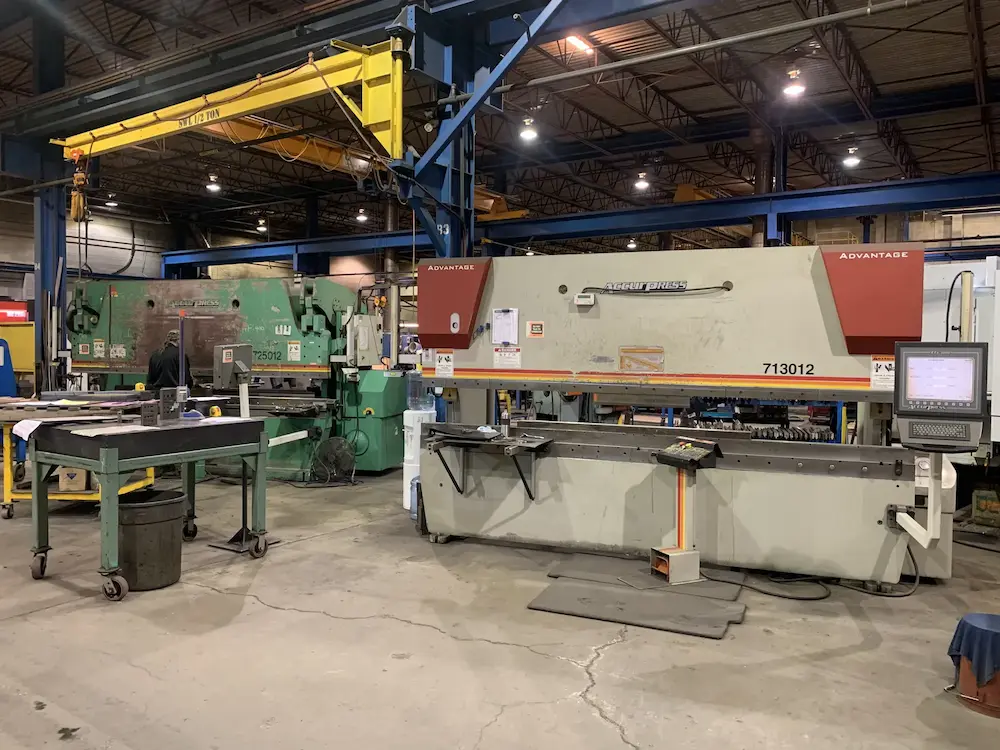

130 TON and 250 TON ACCURPRESS PRESS BRAKESThese 10 foot press brakes are complimented by a 1/2 ton overhead crane. They have many different custom die sets that can be modified or redesigned to fit your needs. We use these machines for many of our niche products that require a specific set of parameters to form to the correct dimensions.
ERCOLINA CE-70 ANGLE / RING ROLLA pipe capacity of 3 inch schedule 40 with a minimum radius of 24 inches. Maximum angle capacity of 3 x 3 x 3/8 inch. We can form structural shapes such as angle iron, bar stock (round and flat), pipe, tube, square tube, rectangular tube, channels and H-beams. This process can roll structural shapes into full circles depending on the diameter and material.

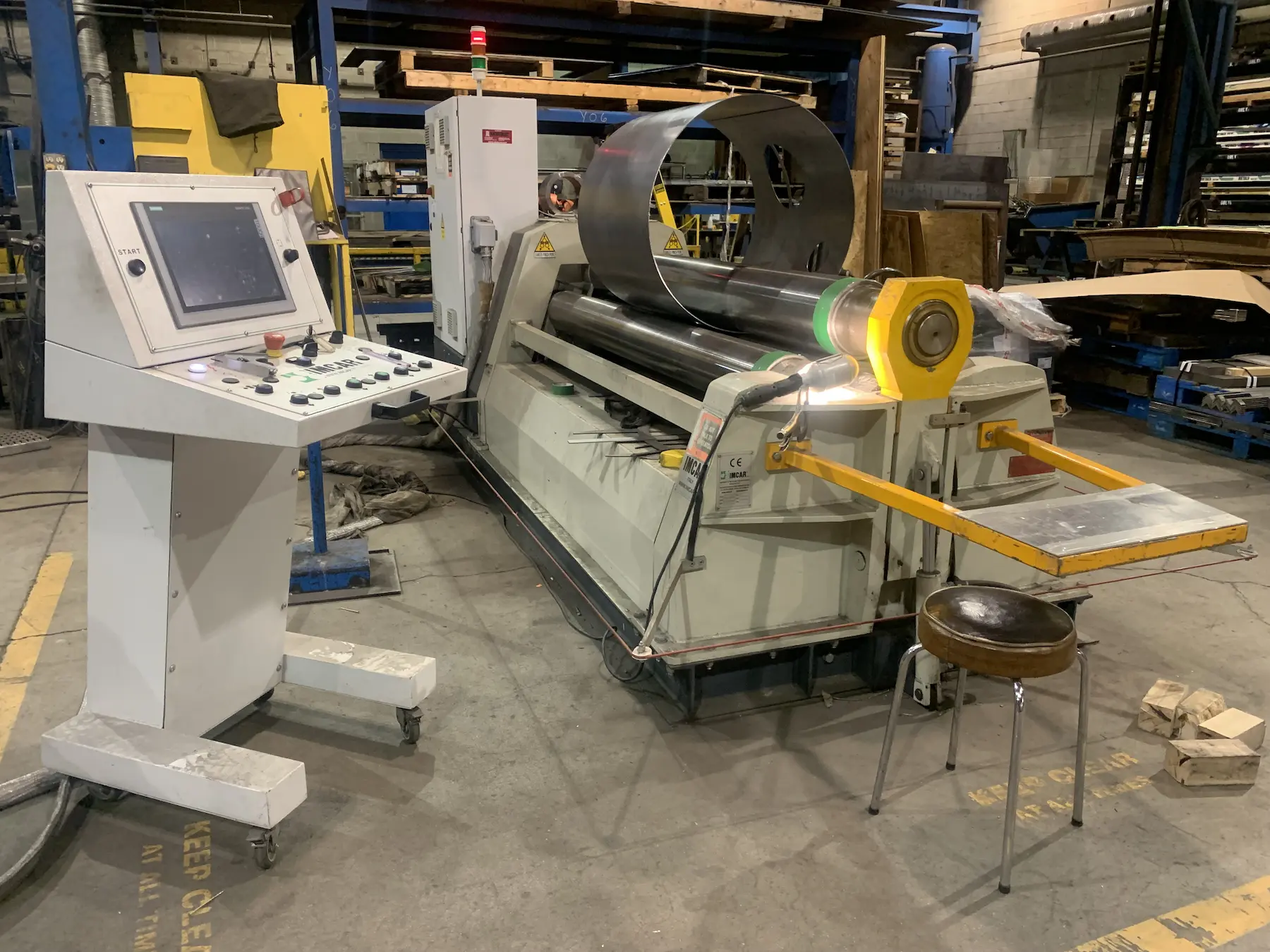

CARELL 4RH CNC CONTROLLED 4 ROLL PLATE ROLL5/16 inch x 6 feet wide mild steel capacity with high polished roll surfaces for material protection. These rolls are regularly used to make elbow segments for large diameter thin walled elbows. A large number of formed shapes can be made with the use of this machine.

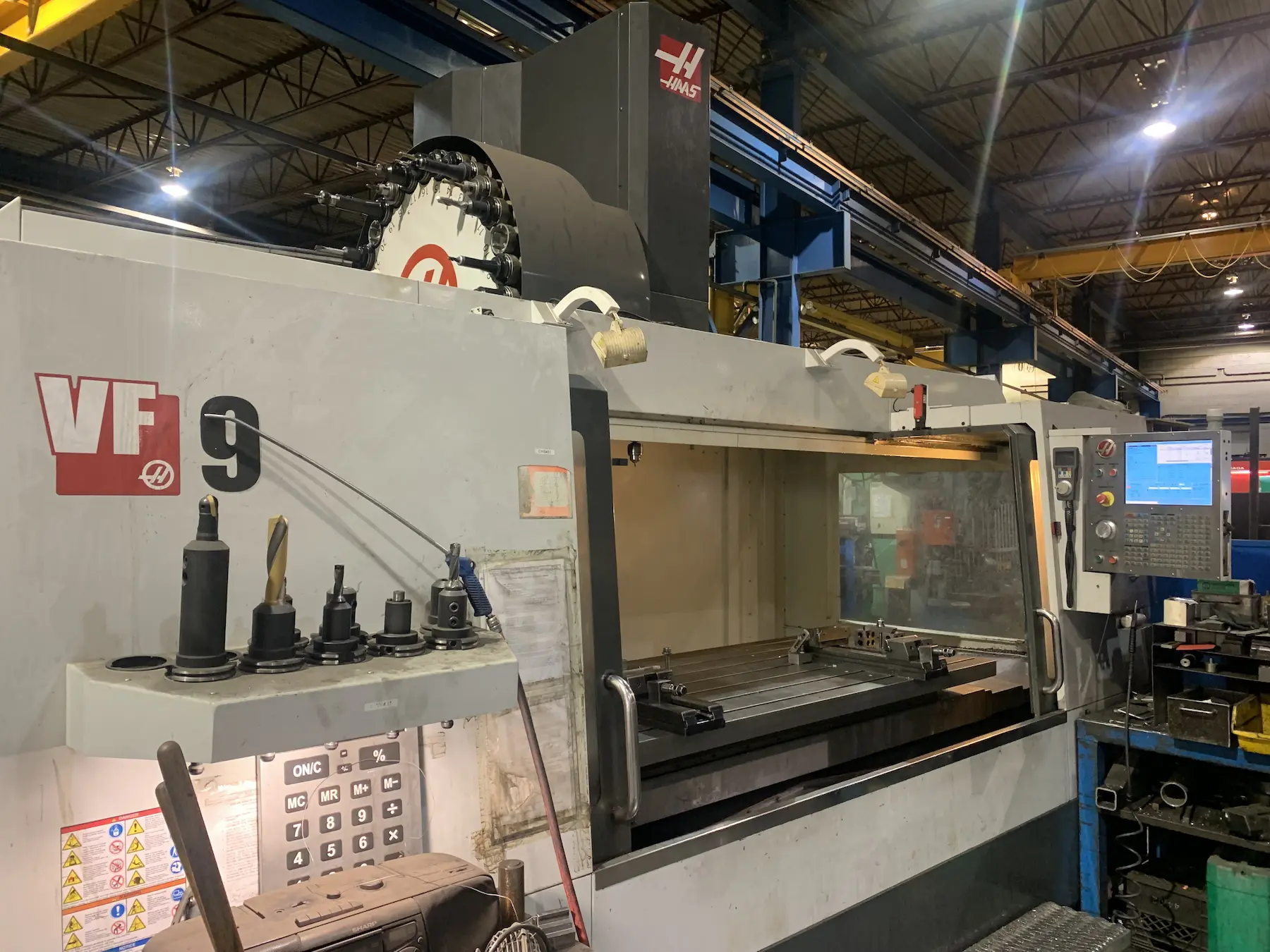

HAAS VF9 VERTICAL MILLING CNC MACHINEOur Haas VF9 has a work envelope of X=84, Y=40, Z=30 inches and a maximum work load of 4,000 lbs. We also have a Haas toolroom mill, a smaller vertical mill with a work envelope of X=40, Y=16, Z=16. All of our Haas machines are high volume ready, and have a lot of potential for cost savings.

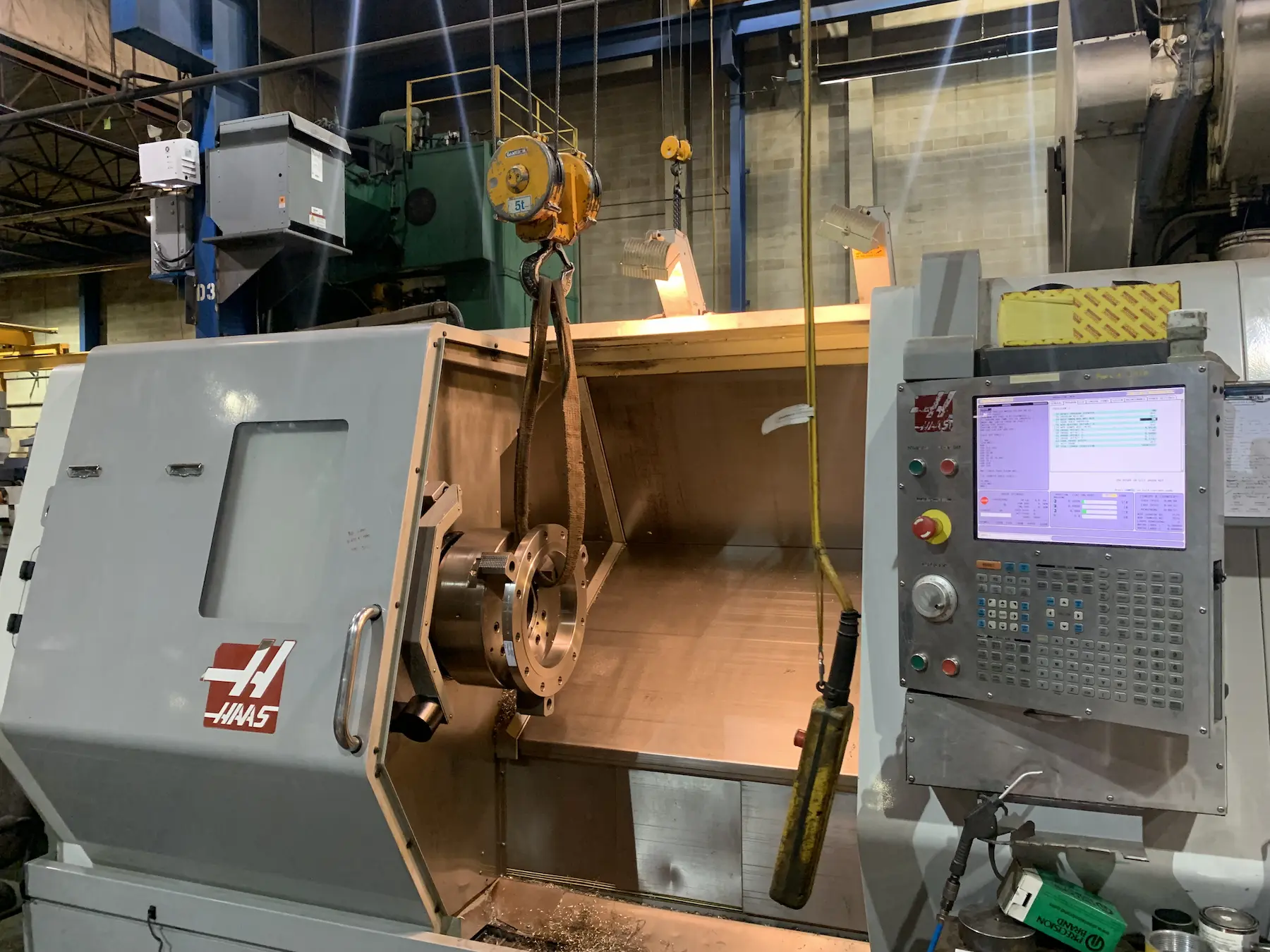

HAAS SL-40 BIG BORE CNC LATHEOur SL-40 Haas BIG BORE lathe has a through bore of 6.5 inches and an 18 inch chuck with 44 inches between centers. Our SL-30 Haas lathe can hold a work piece of 8 inch diameter, 19 inches long.

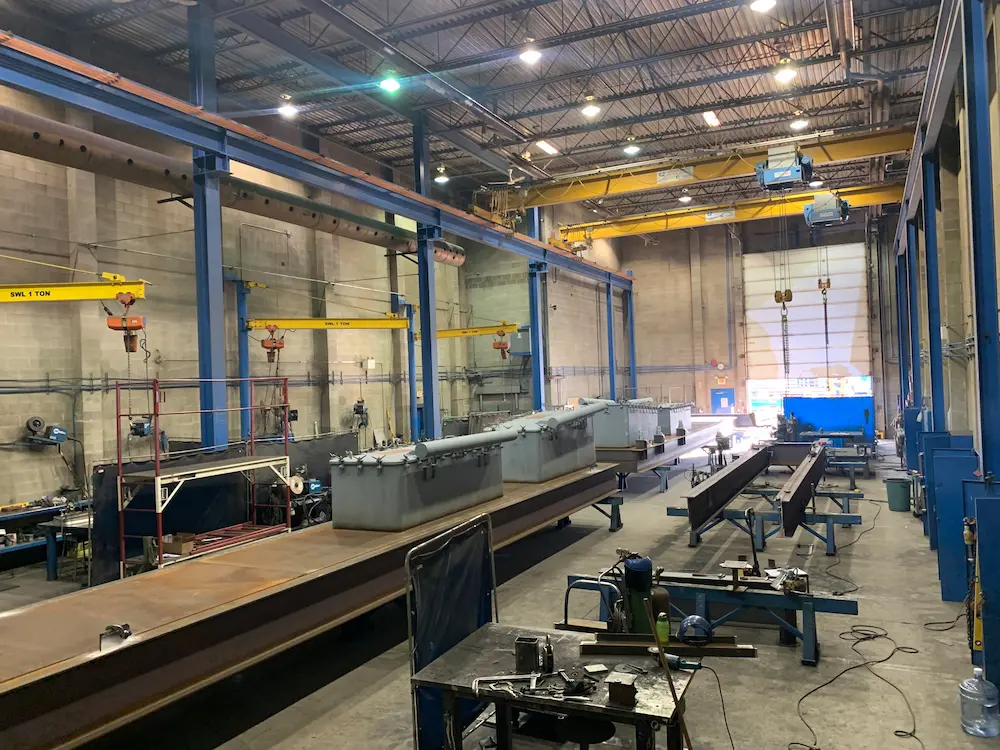

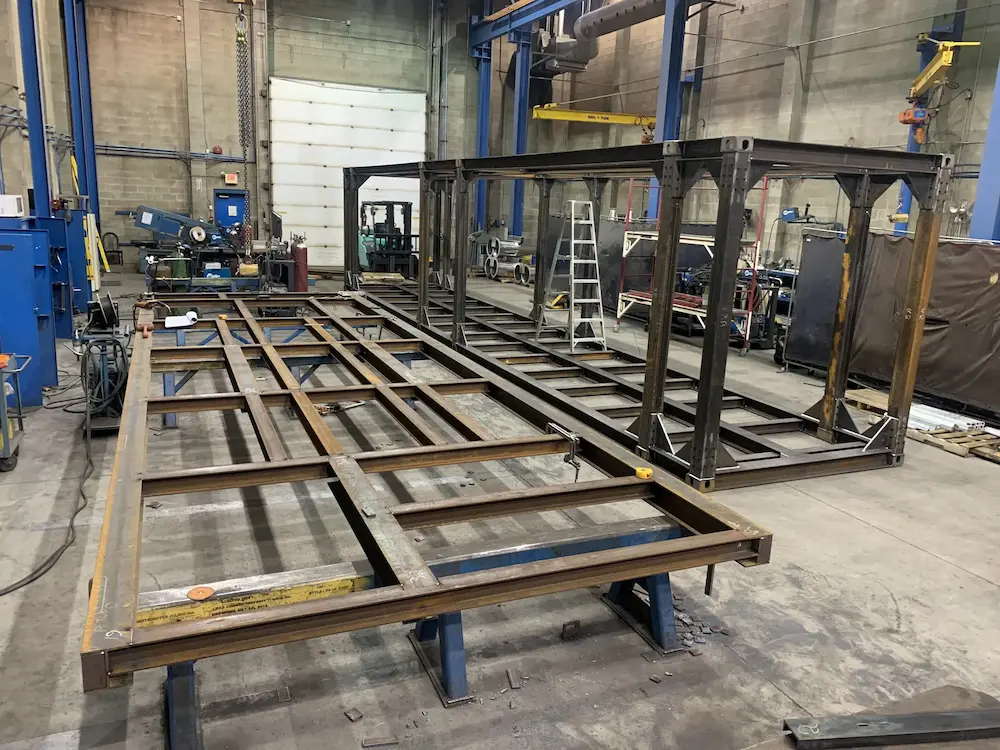

Our fabrication department is supplied with Stick, MIG and TIG portable and fixed welding stations and staffed with Journeymen Fabricators and CWB certified Welders. These employees are all highly skilled in various welding techniques including CSA W59 & ASME Section IX weld procedures. We regularly fabricate steel, stainless, and aluminum assemblies and structures for the transportation, oil and gas, mining, and forestry industries. We have produced a broad range of holding tanks, mini storage building components, and skid packages. We are API 650 certified for weld procedures and have produced storage tank components including roof & shell nozzles, repads, sumps, internal piping, stilling wells, and cleanout door assemblies. We have also manufactured a great deal of saw mill equipment, pipe supports, shoes, and trailer components.
